►Government Policy on Renewable Energy

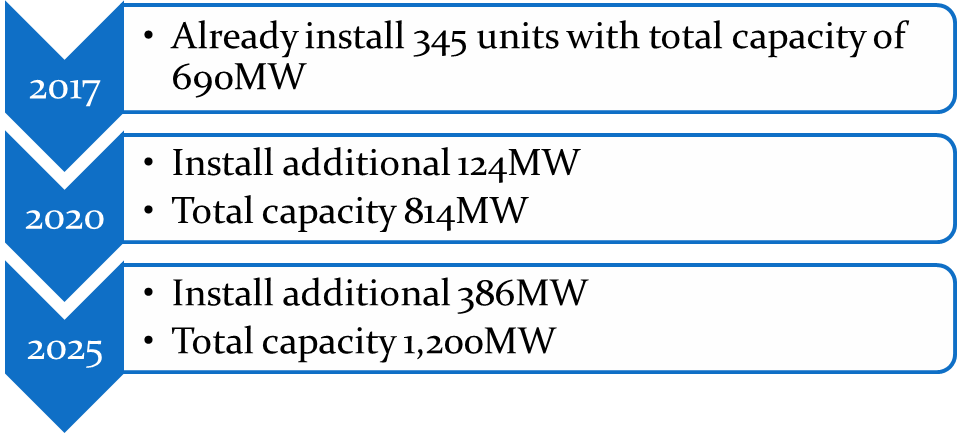

Energy Bureau has set a “Wind Energy 4 year plan” (2017-2020) to accomplish total installed capacity of 1,334 MW in 4 years for reaching target of 4.2 GW(onshore 1.2GW+ offshore 3 GW)by year of 2025.
Onshore
The FIT price for small wind turbine (each wind farm installed capacity under 30kW) is NT$8.6685/kWh
►Your Choice for Small WTG Investment
Animation show 2:50
Construction time-lapse photography 1:22
►SWP Specification
Item | Specification | |
model | SWP-19.8 | SWP-25 |
Rated Power | 19.8kW | 25kW |
Rotor Diameter | 14m | 14m |
Hub Height | 18m | 18m |
Swept Area | 154m2 | 154m2 |
Nominal wind speed | 10m/s | 11m/s |
Starting wind speed | 3m/s | 3m/s |
Cut-off wind speed | 25m/s | 25m/s |
Survival wind speed | 52.5m/s | 52.5m/s |
Maximum rotation per minute | 50rpm | 30/50rpm |
Intertek MCS Micro and Small Wind Turbines 國際認證,符合 IEC61400-2標準
►Design originated from MW turbines
►Convenient and safe tower design
Leaning down with hydraulic device
Help to reduce the risk of typhoon
►Design for low noise
-
第一類:環境亟需安寧之地區。
-
第二類:供住宅使用為主且需要安寧之地區。
-
第三類:以住宅使用為主,但混合商業或工業等使用, 且需維護其住宅安寧之地區。
-
第四類:供工業或交通使用為主,且需防止噪音影響 附近住宅安寧之地區。
►Grid-Connected System
►SW-19.8KW投資效益
-
風場投資金額彈性大
-
可獨資或合資多台或單台機組
-
預估回報率 (Equity IRR) : 10~18%
-
場址年平均風速7.5m/sec: 可發電100,000kwh(度)
-
場址年平均風速6.5m/sec: 可發電80,000kwh(度)
-
申設、安裝、運維,可提供一條龍服務
-
手機、電腦即時監控平台,可隨時了解風機發電狀況

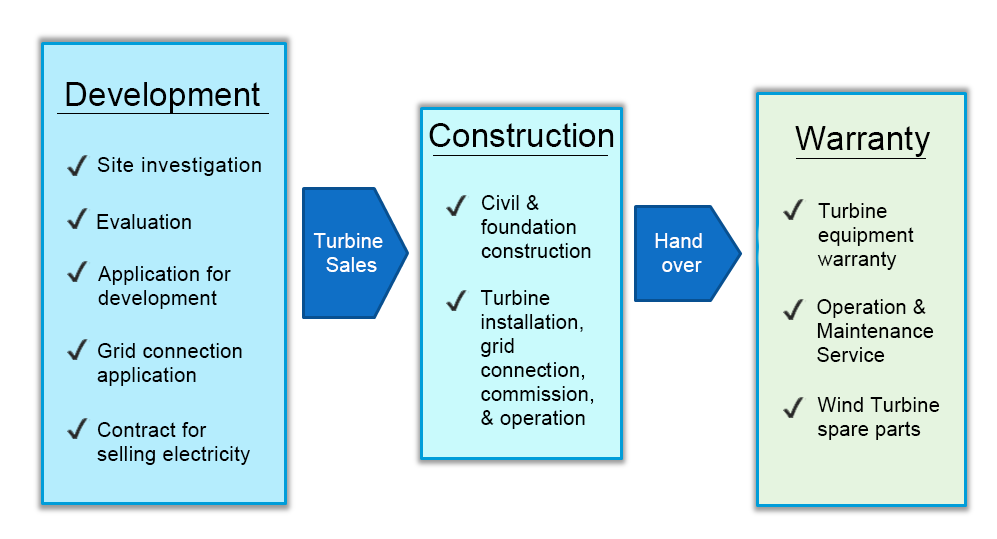

►We provide Full Servic
VTC provides one-stop service and customer mobile phone to monitor the power generation status on the Internet
►Warranty & Maintenance
5 years warranty✔ Gearbox
✔ Generator
✔ 3 Blades
✔ Brake disk
✔ Main bearing
✔ Yaw Ring
VTC provides professional technicians who are trained and certified by the turbine maker to provide schedule maintenance and trouble shooting.
►Total Solution 完整解決方案-SWP風機
✔ 併網售電型:19.8kW 、25kW
✔ 機型媲美大型風機
✔ 低噪音、安裝地點易尋找
✔ 防颱設計(可整機油壓傾倒)
✔ 地面安裝、維護簡易
✔ 發電效益高、投資報酬率高
✔ 符合IEC61400-2國際認證
✔ 支援遠端監控、手機APP搖控
✔ 源自大風機強韌的葉片設計
✔ 一條龍服務
✔ 原廠認證台灣專業維修團隊
